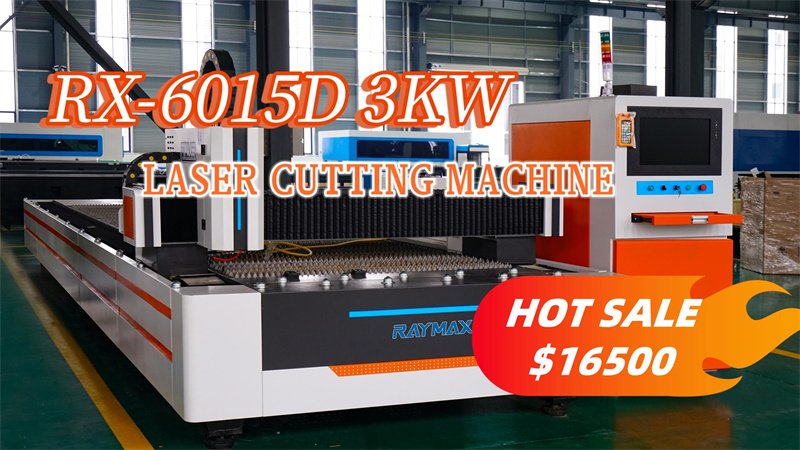

High Quality RX-6015D 3KW Cnc Fiber Laser Cutting Machine

Keterangan

Experience the ultimate in laser cutting technology with the RAYMAX 6015D 3KW fiber laser cutting machine, now available for just $16,500. This cutting-edge machine features an advanced laser from a renowned international brand, offering exceptional electro-optical efficiency while prioritizing eco-friendliness through water and energy conservation. One of its most impressive qualities is its long maintenance-free operation, drastically reducing upkeep costs and minimizing downtime to enhance your overall productivity.

The RAYMAX 6015D is designed with a robust gantry structure and high-damping bed, providing unparalleled rigidity and precision for stable operation. Constructed from premium high-quality steel and featuring a honeycomb design, the frame undergoes a meticulous annealing process and extensive machining on a large gantry milling machine. This attention to detail ensures exceptional seismic resistance and stability, perfectly catering to the rigorous demands of high-speed motion in laser cutting applications. Elevate your cutting capabilities and streamline your production process with the RAYMAX 6015D today!

Parameter

Product Model	RX-3015	RX-4020	RX-6015	RX-6025
Wilayah kerja	3000*1500mm	4000*2000mm	6000*1500mm	6000*2500mm
Kekuatan Laser	1000W、1500W、2000W、3000W、6000W
Positioning Accuracy	±0.03mm/m
Akurasi Pemosisian Berulang	±0,02mm
Maximum Moving Speed	120m/mnt
Maximum Cutting Speed	60m/mnt
Drive System	High precision gear and rack + high precision linear guide rail
Voltase	380VAC ± 10%/50Hz

Equipment

1. Fiber Laser Cutting Head and Automatic Tracking System
Equipped with a special fiber laser cutting head and a capacitive non-contact automatic tracking system, it can automatically adjust the best focal length to ensure the best cutting effect of the whole board, and avoid the material scrap caused by the change of focal length when the material is uneven.

2. Machine Tool System
The mobile gantry structure can maintain long-term stability and anti-vibration; the aluminum beam has been professionally manufactured by professional large-scale enterprises, secondary aging treatment, and precision machining by large gantry milling machines to ensure the rigidity and stability of the machine tool. Good performance. The equipment has high precision, good rigidity and stable operation.

3. Machine Base
After professional manufacturing by professional large enterprises, secondary aging treatment, large-scale gantry milling machine precision processing, these design and processing methods ensure that the machine tool has excellent shock resistance, high rigidity and stability.

4. Slag discharge system
The lower part of the bed is equipped with a partition collector, which can automatically remove waste materials and collect small parts in the production process.

5. Transmission System
It adopts high-quality rack and pinion transmission and bilateral linear guides; and adopts the original servo motor drive system imported from Japan. Its control has the characteristics of stronger stability and better compatibility to ensure the machine tool under high-speed motion.

Fiber Laser Generator

MAX Laser Generator
MFSC 10000W-12000W single module continuous fiber laser is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance free. It takes into account the high-speed cutting of thin plates and the bright surface cutting of medium and thick plates.

IPG Laser Generator
IPG fiber laser generator has reliable performance and low overall cost, which can help end users improve productivity while reducing costs. Full cutting capacity, metal plate cutting thickness up to 120mm.

RAYCUS Laser Generator
High electro-optical conversion efficiency
Customizable output fiber length
QD connector
Maintenance free operation
Wide modulation frequency range
Resistance to high inversion
High efficiency in thin plate cutting

Sistem pengaturan

Kepala Pemotong

Low Power-RAYTOOLS Brand

High Power-BOCI Brand

rincian

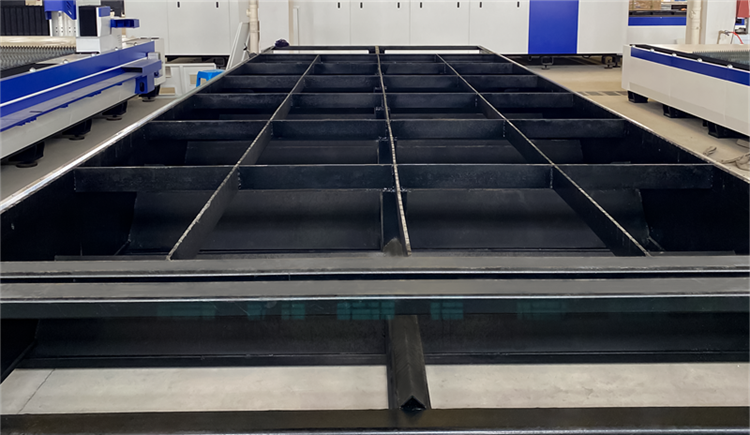

Stable and Solid Bed
Steel plate welding workbench
Twice tempering

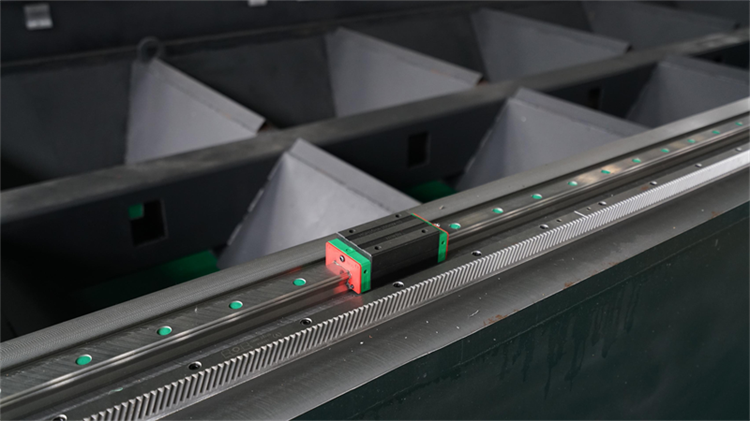

Transmission System
The combination of German ROR racks and German HeRen linear guides improves cutting speed

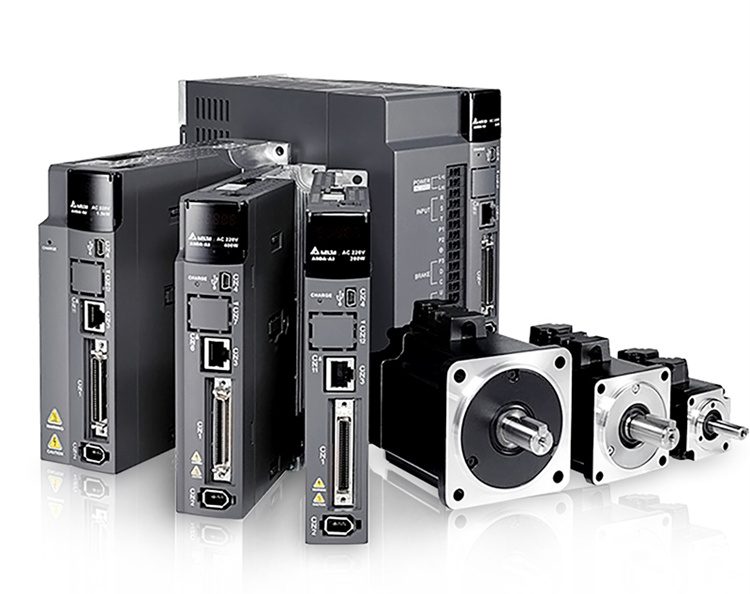

Servo Motor
Adopt Taiwan DELTA servo motor with high performance and long service life.

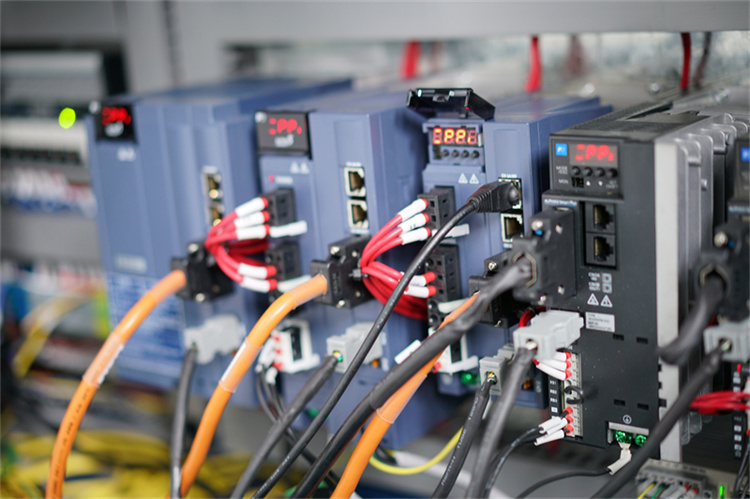

Servo Drive
Adopt Japan Yaskawa or Taiwan Delta servo drive to ensure the stability and accuracy of work.

Water Cooler
Intelligent control, precise temperature control, various alarm protection function

Peredam
Italy brand MOTOVARIO reducer. High tensile rigidity, high precision, low noise, ip65 protection level, to ensure the sustainable operation of 90 degrees.

Aplikasi

The laser cutting machine can cut most metal materials with a cutting thickness of up to 50mm.
Widely used in sheet metal processing, advertising sign production, high and low voltage electrical cabinet production, mechanical parts, kitchenware, automobiles, machinery, metal crafts, saw blades, electrical parts, glasses industry, springs, circuit boards, electric kettles, medical micro Electronics, hardware, knife measuring tools and other industries.
